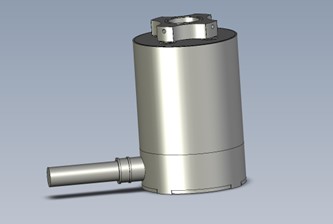

T2a piezo-driven platforms tip and tilt reflective optics in only milliseconds. Resolutions are of nano-rad magnitude. The standard version with 12 mrad deflection is made for optics with up to 2″ diameter. Versions for larger optics are available.
Single-Axis platforms and special solutions are of course possible and partly existing already. Ask us about these!
Product-Number | T2O-P20006 | T2S-D20006 | Unit |
Angle/Deflection, closed loop | – | 6/12 | mrad |
Angle/Deflection, open loop | 7/14 | mrad | |
Resolution, open loop | 20 | nrad | |
Resolution, closed loop | – | 50 | nrad |
Linearity, closed loop | – | 0.4 | % |
Repeatability, closed loop | – | 250 | nrad |
Resonance, unloaded | 2.0 | kHz | |
Resonance, w/ ø25 x 8 mm mirror | 1.5 | kHz | |
El. Capacitance @ 1V eff. 1kHz | 6.6/axis | µF | |
Distance, Mirror-Bottom to Pivot-Pt. | 3.7 | mm | |
Platform-Material | stainless steel | ||
Mounting Pattern, bottom | 4x M3 on d=19 | mm | |
Mounting Pattern for mirror-holder | 4x M1.6 | mm | |
Operating Temperature | -20..80 | °C | |
Wire-Length | 1500 | mm | |
Connectors | – | D-Sub | |
Weight | 350 | g | |
Mirror | optional |
Options:
- Vacuum-Compatibility
- Non-Magnetic Versions
- Suitable Drivers, open-loop, EBO-060100
- Suitable Controller, closed-loop, EBD-060325
