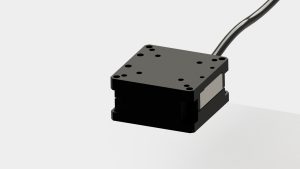

C1O-L00250 and C1S-D00250 are compact X-stages with smallest dimensions. The footprint is 40×40 mm only. The large range of more than 300 µm is unique for those dimensions.
| Product-Number | C1O-L00250 | C1S-D00250 | Unit |
| Position-Sensor | – | SGS | |
| Range (-45..180 V) | 330 | 330 | µm |
| Range, closed loop | – | 250 | µm |
| Resolution, open loop | 1 | 1 | nm |
| Resolution, closed loop | – | 3 | nm |
| Linearity, closed loop | – | 0.2 | % |
| Repeatability, closed loop | – | 25 | nm |
| Load | 150 | g | |
| Push/Pull | 15/10 | N | |
| Stiffness | 0.4 | N/µm | |
| Lowest Resonance, unloaded | 210 | Hz | |
| Lowest Resonance, w/ load 30g | 190 | Hz | |
| El. Capacitance @ 1V eff. 1kHz | 2.2/axis | µF | |
| Body-Material | aluminum, stainless steel | ||
| Dimensions | 40x40x20 | mm | |
| Wire-Length | 1.5 | m | |
| Connectors | Lemosa | DSub15 | |
| Operating Temperature | -20.. 80 | °C | |
Options:
- Vacuum-Compatibility
- Non-Magnetic Versions
- Suitable Driver, open-loop, EBO-060100
- Suitable Controller, closed-loop, EBD-060310
